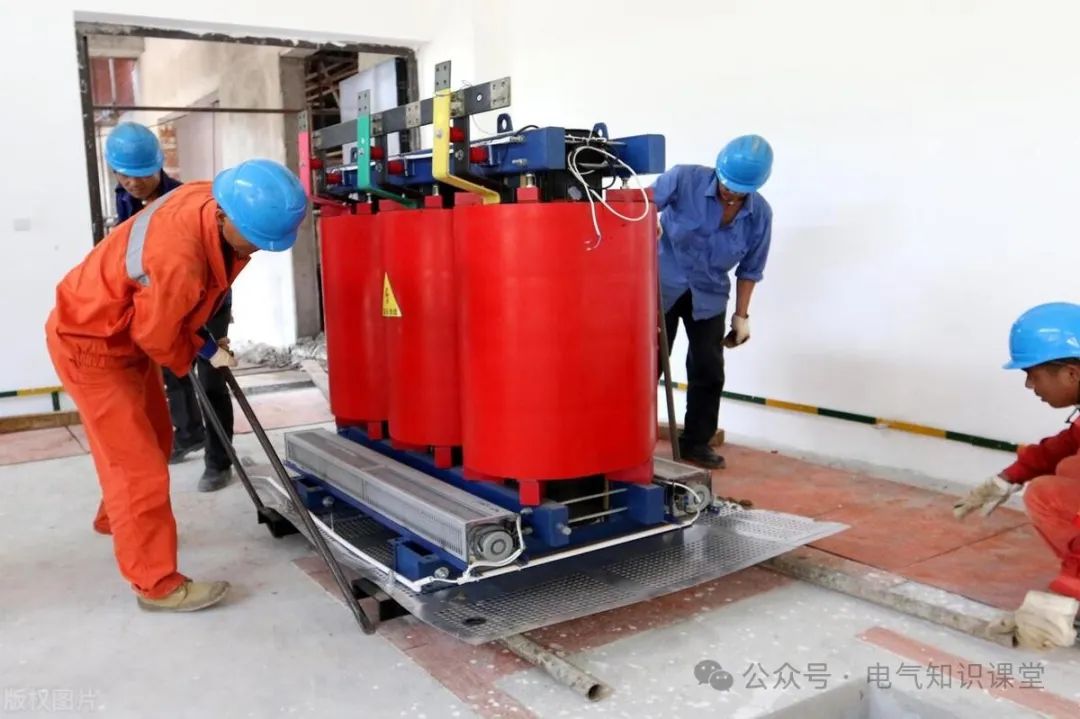

Transformer Capacity and Rated Current Calculation

Transformer Capacity (Apparent Power):

• The capacity of a transformer is typically expressed in terms of its apparent power, measured in kVA (kilovolt-ampere) or MVA (megavolt-ampere).

• The formula for calculating the apparent power ($S$) is:

  $$S=\sqrt{P^2+Q^2}$$

  where:

  • $P$ is the active power (in kW),
  • $Q$ is the reactive power (in kVAR).

• For single-phase transformers:

  $$S=V\times I$$

  where:

  • $S$ is the apparent power (in VA),
  • $V$ is the rated voltage (in volts),
  • $I$ is the rated current (in amperes).

• For three-phase transformers:

  $$S=\sqrt{3}\times V_{\text{LL}}\times I_{\text{L}}$$

  where:

  • $V_{\text{LL}}$ is the line-to-line voltage (in volts),
  • $I_{\text{L}}$ is the line current (in amperes).
  •

Rated Current Calculation:

• The rated current ($I$) of a transformer can be calculated based on its capacity and rated voltage.

• For single-phase transformers:

  $$I=\frac{S}{V}$$

  where:

  • $I$ is the rated current (in amperes),
  • $S$ is the apparent power (in VA),
  • $V$ is the rated voltage (in volts).

• For three-phase transformers:

  $$I=\frac{S}{\sqrt{3}\times V_{\text{LL}}}$$

  where:

  • $I$ is the line current (in amperes),
  • $S$ is the apparent power (in VA),
  • $V_{\text{LL}}$ is the line-to-line voltage (in volts).

Practical Considerations:

• The rated current determines the maximum current the transformer can handle without exceeding its thermal limits.
• Transformers are designed to operate at their rated capacity under specified conditions, including ambient temperature, cooling method, and load type.
• Overloading a transformer beyond its rated capacity can lead to overheating, insulation failure, and reduced lifespan.

Examples:

• For a single-phase transformer with a capacity of 10 kVA and a rated voltage of 230 V:
  $$I=\frac{10,000}{230}\approx 43.48\text{A}$$
• For a three-phase transformer with a capacity of 500 kVA and a line-to-line voltage of 415 V:
  $$I=\frac{500,000}{\sqrt{3}\times 415}\approx 695.6\text{A}$$
