Iron Loss and Copper Loss in Transformers

In electrical engineering, the efficiency and performance of a transformer are significantly influenced by two primary types of energy losses: iron loss (also known as core loss) and copper loss (also known as winding loss). These losses are inherent to the operation of transformers and must be carefully considered during design and application.

1. Iron Loss (Core Loss)

Iron loss occurs in the transformer's core and is primarily caused by the alternating magnetic flux within the core material. It consists of two main components:

• Hysteresis Loss:
  This loss arises due to the repeated magnetization and demagnetization of the core material as the alternating current flows through the primary winding. The energy consumed in this process is proportional to the area enclosed by the hysteresis loop of the core material.

• Eddy Current Loss:

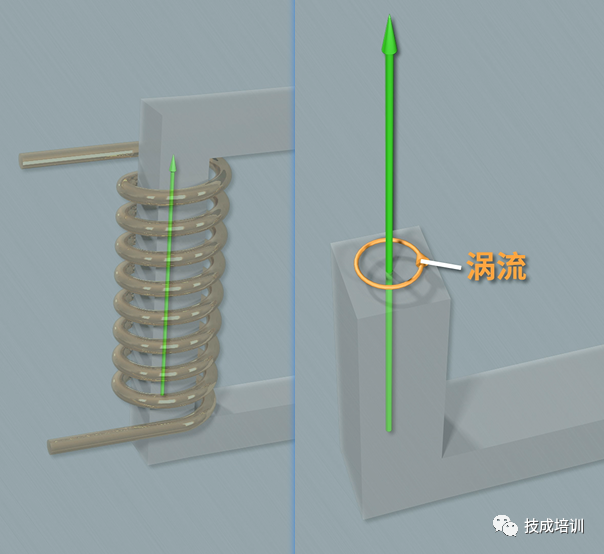

  Eddy currents are circulating currents induced in the core material due to the changing magnetic flux. These currents cause localized heating and energy dissipation. To minimize eddy current loss, transformer cores are typically constructed from thin laminated silicon steel sheets with insulating coatings between layers.

Iron loss is independent of the load and depends mainly on the supply voltage and frequency. It is a constant loss as long as the transformer is energized.

2. Copper Loss (Winding Loss)

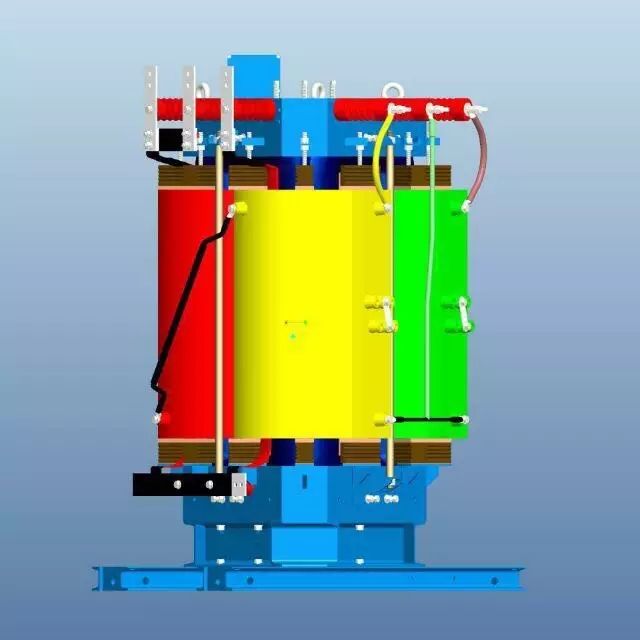

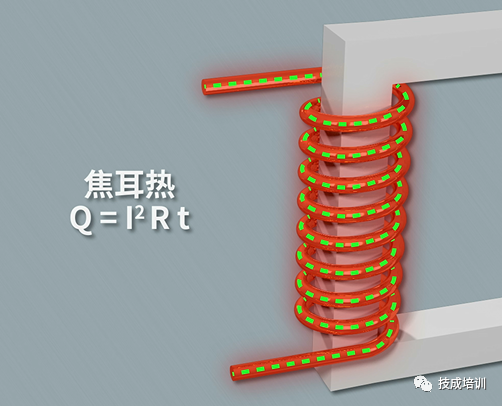

Copper loss occurs in the transformer windings due to the resistance of the conductors. When current flows through the primary and secondary windings, power is dissipated as heat due to the resistive nature of the copper or aluminum wires. Key characteristics of copper loss include:

• Load-Dependent:
  Copper loss varies with the square of the load current ($I^{2}R$), where $R$ is the resistance of the winding. At no-load, copper loss is minimal, but it increases significantly under full-load conditions.

• Proportional to Winding Resistance:
  Using materials with lower resistivity (e.g., copper instead of aluminum) and optimizing the winding design can reduce copper loss.



3. Importance of Minimizing Iron and Copper Losses

Minimizing iron and copper losses is critical for improving the overall efficiency of a transformer:

• Energy Efficiency: Reducing these losses directly translates to higher energy savings and improved operational efficiency.
• Thermal Management: Lower losses result in reduced heat generation, which enhances the transformer's lifespan and reliability.
• Environmental Impact: Efficient transformers contribute to lower greenhouse gas emissions by reducing energy wastage.
•
