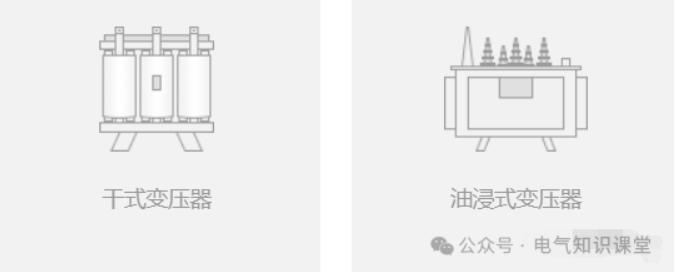

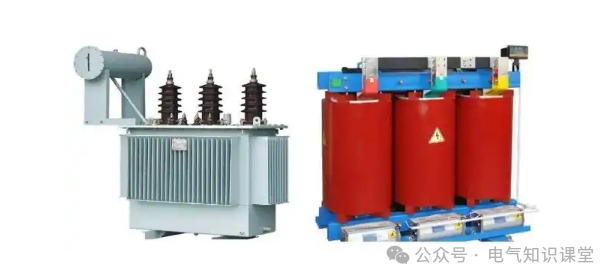

Choosing Between Dry-Type and Oil-Immersed Power Transformers? First, Understand the Key Differences Between Them

1. Cooling Medium

• Dry-Type Transformers: Use air as the primary cooling medium. They rely on natural or forced air convection to dissipate heat generated during operation.
• Oil-Immersed Transformers: Use transformer oil as both a cooling and insulating medium. The oil circulates through radiators or cooling fins to transfer heat away from the core and windings.

2. Insulation System

• Dry-Type Transformers: Utilize solid insulation materials such as epoxy resin, cast resin, or Nomex paper. These materials are designed to withstand high temperatures and provide excellent fire resistance.
• Oil-Immersed Transformers: Employ liquid insulation (transformer oil) combined with cellulose-based paper for winding insulation. The oil enhances dielectric strength and provides superior thermal conductivity.

3. Fire Safety

• Dry-Type Transformers: Are inherently safer in fire-prone environments because they do not contain flammable liquids. They are often preferred in indoor installations, commercial buildings, and densely populated areas.
• Oil-Immersed Transformers: Pose a higher fire risk due to the presence of combustible oil. Special fire prevention measures, such as oil containment pits and fire suppression systems, are required for safe operation.

4. Environmental Impact

• Dry-Type Transformers: Are more environmentally friendly since they do not involve hazardous liquids that could leak or contaminate the surroundings.
• Oil-Immersed Transformers: Require careful handling and maintenance of transformer oil to prevent leaks, which can cause soil and water pollution. Additionally, regular oil testing and replacement may be necessary.

5. Efficiency and Capacity

• Dry-Type Transformers: Typically have lower efficiency and capacity compared to oil-immersed transformers. They are suitable for low-to-medium voltage applications and smaller load requirements.
• Oil-Immersed Transformers: Offer higher efficiency and are capable of handling much larger capacities, making them ideal for high-voltage transmission and distribution systems.

6. Cost Considerations

• Dry-Type Transformers: Have a higher upfront cost due to advanced insulation materials and manufacturing processes. However, they require less maintenance and are easier to install indoors.
• Oil-Immersed Transformers: Are generally more cost-effective for large-scale applications but incur additional expenses for oil maintenance, fire safety measures, and environmental compliance.

7. Applications

• Dry-Type Transformers: Commonly used in indoor installations, urban areas, hospitals, schools, and other environments where fire safety and minimal environmental impact are priorities.
• Oil-Immersed Transformers: Widely used in outdoor substations, industrial facilities, and high-capacity power transmission systems where space and environmental constraints are less critical.
•
